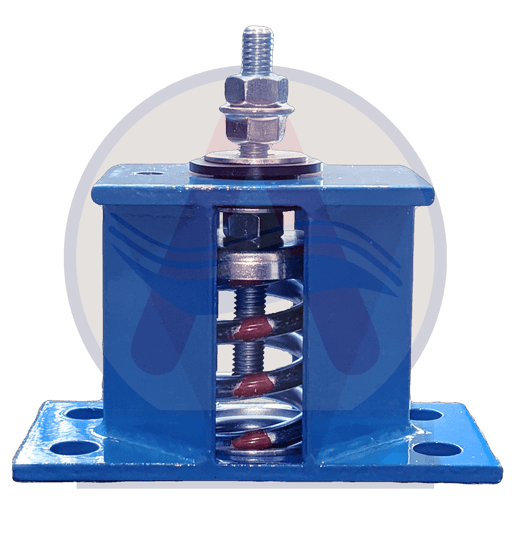

Seismic spring mounts type SS-A-1xx series are heavy duty steel spring isolators with built in all directional snubbing. The snubbing element is a high-quality molded neoprene. The housing is made of steel construction with powder coated finish. The spring is made of galvanized steel. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Compressors
Air Handling Units
Fans
Pumps
Chillers
Built-in leveling device
Welded construction
Anti-skid elastomeric Acoustical pad
Springs are color-coded for easy field identification
Mounting holes furnished as standard
High deflection, low natural frequency
Laterally stable springs
ANDRE_SeismicSpringMounts_SS_A_1xx.pdf
ANDRE_Seismic Spring Mounts SS-A-1xx-Submittal.pdf
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SS-A-100 | 21 | 32 | 1.0 | SILVER | PINK |
| SS-A-101 | 40 | 60 | 1.3 | SILVER | BLUE |
| SS-A-102 | 67 | 100 | 1.3 | SILVER | ORANGE |
| SS-A-103 | 111 | 165 | 1.2 | SILVER | BROWN |
| SS-A-104 | 174 | 260 | 1.0 | SILVER | BLACK |
| SS-A-105 | 248 | 370 | 1.0 | SILVER | YELLOW |
| SS-A-106 | 302 | 450 | 1.0 | SILVER | RED |
| SS-A-107 | 469 | 700 | 1.0 | SILVER | GREEN |
